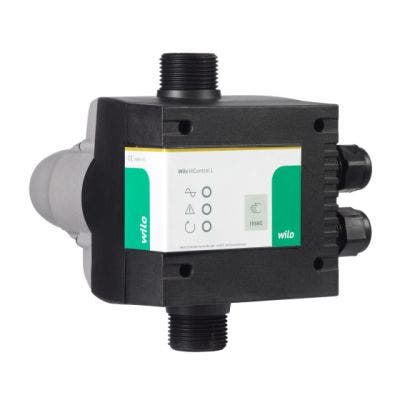

Wilo HiControl 1 Flue Control Switch
In stock
Product Code
U72271
Electronic control and regulation accessories. The Wilo HiControl 1 series is used for borehole pumps to enable automatic operation. Wilo-HiControl 1 protects the pump against operation with low volume flow. Thanks to a volume flow sensor and pressure sensor, Wilo-HiControl 1 automates the pump between two values, the start-up pressure and the shut-down volume flow. If the pressure in the network is lower than the start-up pressure, Wilo-HiControl 1 starts the pump. The pump continues to operate until the volume flow falls below the value of the shut-off volume flow.
The interior small container prevents water hammering and cycling.
Wilo-HiControl 1 can be mounted on surface pumps or connected to submersible pumps for domestic water supply.
Special features
• Simple installation
• Especially compact design makes it suitable for many types of installation locations
• High operational reliability due to electronic fault signal
• Protection of the connected pumps due to built-in protection against low water levels
• Simple operation due to clear operating state display
• No additional diaphragm pressure vessel required
• Perfect corrosion protection, due to rust-free materials
• Inline version with input and output in vertical axis and uniform thread connections, suitable for direct connection to the pump housing or wall surface installation with a wall bracket (accessories).
Note
• The HiControl 1 may be installed only in vertical position with the output at the top.
Scope of delivery
• HiControl 1
• Cable tie for quick and secure installation of ready-to-plug pump units
The interior small container prevents water hammering and cycling.
Wilo-HiControl 1 can be mounted on surface pumps or connected to submersible pumps for domestic water supply.
Special features
• Simple installation
• Especially compact design makes it suitable for many types of installation locations
• High operational reliability due to electronic fault signal
• Protection of the connected pumps due to built-in protection against low water levels
• Simple operation due to clear operating state display
• No additional diaphragm pressure vessel required
• Perfect corrosion protection, due to rust-free materials
• Inline version with input and output in vertical axis and uniform thread connections, suitable for direct connection to the pump housing or wall surface installation with a wall bracket (accessories).
Note
• The HiControl 1 may be installed only in vertical position with the output at the top.
Scope of delivery
• HiControl 1
• Cable tie for quick and secure installation of ready-to-plug pump units
| Brand | Wilo |
|---|---|
| Manufacturer Part Code | 4190896 |
| Range | HiControl |
| Product Type | Flue Kit |
| Power Supply | 230 V, 50/60 Hz |
| Depth | 175 mm |
| Width | 115 mm |
