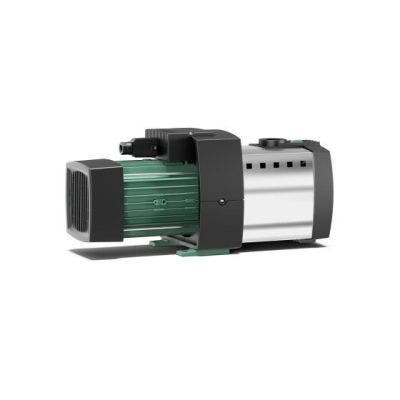

Wilo Hi-Multi 3-23 Booster Pump with Controller

Multistage, horizontal centrifugal pump in glanded pump design, not self-priming, with directly flanged motor. The shaft bushing is sealed by a maintenance-free, force-flushed mechanical seal.

For pumping and pressure boosting of drinking water or slightly muddy water in the residential, agricultural and other areas.

Water supply from wells, rainwater storage tanks for irrigation, sprinkling, pressure boosting etc.

2-pole single-phase motor with threaded cable connection, capacitor in the connection box, motor protection switch with automatic reactivation.

Scope of delivery

- Pump

- Two plastic connectors with seals for manually connecting to the inlet pipe

- A quick electrical connection

- Installation and operating instructionsAccessories

- HiControl 1

- HiControl 1-EK

- Float switch WA 65

- Float switch WAEK 65

- Float switch WAO 65

- Float switch WAO EK 65

- Dry-running protection for single-phase motors (G11/4)
