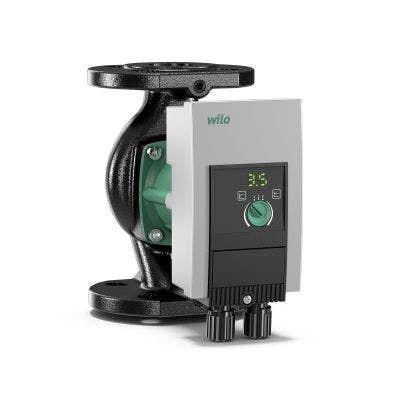

Wilo Yonos Maxo 25/0.5-7 PN10 Circulating Pump
In stock
Product Code
U56611
High efficiency pump Wilo-Yonos MAXOelectronically controlled, Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all heating, ventilation and air-conditioning applications.
Standard-equipped with:
• Preselectable control modes for optimum load adjustment: Δp-c (differential pressure constant), Δp-v (differential pressure variable)
• 3 speed stages (n = constant)
• LED for setting thesetpoint and displaying error messages
• Electrical connection with the Wilo plug
• Fault lamp and contact for collective fault signal
For flange-end pumps - flange versions:
• Standard version for pumps DN 32 to DN 65: PN 6/10 combination flange (PN 16 flange according to EN 1092-2) for PN 6 and PN 16 counter flanges
• Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange
Standard-equipped with:
• Preselectable control modes for optimum load adjustment: Δp-c (differential pressure constant), Δp-v (differential pressure variable)
• 3 speed stages (n = constant)
• LED for setting thesetpoint and displaying error messages
• Electrical connection with the Wilo plug
• Fault lamp and contact for collective fault signal
For flange-end pumps - flange versions:
• Standard version for pumps DN 32 to DN 65: PN 6/10 combination flange (PN 16 flange according to EN 1092-2) for PN 6 and PN 16 counter flanges
• Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange
| Brand | Wilo |
|---|---|
| Manufacturer Part Code | 2120639 |
| Range | Yonos Maxo |
| Product Type | Circulation Pump |
| Power Supply | 230 V |
| Pressure | max 10 bar |
| Size | 25/0.5-7 |
