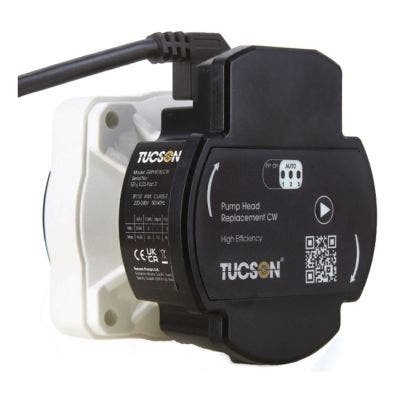

Tucson GBPHR-8-CW Boiler Pump Head Replacement
In stock
Product Code
U49639
Features
– High performance modulating pump
– Optional pulse width modulation (PWM)
– Simple & easy retro-fit in most boiler brands
– Easy set up to maximise boiler efficiency
– 1 year manufacturers warranty
– ErP Compliant
Technical Data
– EEI (Energy Efficiency Index) ≤ 0.23 Part 3
– Pump head pressure range from 4-8M
– Flow rate range up to 31.6 L/min
– Pumped liquid temperature range +2°C - 110°C
– Operating environment temperature 0°C - 40°C
– Relative ambient humidity: 95%
– Voltage / Frequency: 230V, 50/60Hz
– Maximum system pressure: 10 Bar
– Ingress protection: IP44
– Decibel rating: 43 dB
– Insulation class: F
– Pump weight: 1.1Kg
Product Includes:
– Tucson GBPHR/8/ Pump x1
– Replacement Flange O Rings x2
– Volute assembly Studs x4
– AC power cable (stripped end) x1
– IP Rated terminal block x1
– Quick-fit AC power cable adaptor x1
– High performance modulating pump
– Optional pulse width modulation (PWM)
– Simple & easy retro-fit in most boiler brands
– Easy set up to maximise boiler efficiency
– 1 year manufacturers warranty
– ErP Compliant
Technical Data
– EEI (Energy Efficiency Index) ≤ 0.23 Part 3
– Pump head pressure range from 4-8M
– Flow rate range up to 31.6 L/min
– Pumped liquid temperature range +2°C - 110°C
– Operating environment temperature 0°C - 40°C
– Relative ambient humidity: 95%
– Voltage / Frequency: 230V, 50/60Hz
– Maximum system pressure: 10 Bar
– Ingress protection: IP44
– Decibel rating: 43 dB
– Insulation class: F
– Pump weight: 1.1Kg
Product Includes:
– Tucson GBPHR/8/ Pump x1
– Replacement Flange O Rings x2
– Volute assembly Studs x4
– AC power cable (stripped end) x1
– IP Rated terminal block x1
– Quick-fit AC power cable adaptor x1
| Colour | Black |
|---|---|
| Brand | Instantor |
| Manufacturer Part Code | 771928 |
| Product Type | Circulation Pump |
