Systemlink SystemZone 6
In stock
Product Code
U83295

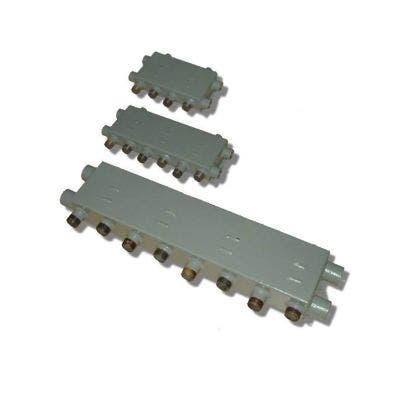

SystemZone is a patented distribution manifold that collects heated or cooled fluid from one or more sources and distributes it to one or more zones. Pumps are used to circulate the fluid and safety routes are always open. SystemZone is a cheap and simple alternative to custom designed, valve controlled zoning methods:
• SystemZone isolates and controls heating water collection and distribution circuits. Each circuit is independent of all others – no water flows if the circuit’s pump is not operating.
• SystemZone stratifies hot and cold water, ensuring that zones draw from only the hottest water.
• SystemZone has connection points for ancillary safety devices, safety valves and expansion tanks. It has an unobstructed internal baffle system and contains no moving parts for long-term trouble-free use. SystemZone also eliminates the need for motorised valves and a system bypass.
• In a standard, simple, configuration one or two heat sources may be connected to the SystemZone (including Solid FuelAppliances).
• SystemZone is particularly suited to systems where high velocity is required. This means independent pump speeds may be selected to closely match a particular zone’s water velocity requirements.
• SystemZone is suitable for the largest commercial, industrial and district heating applications.
• SystemZone makes it simple to use multiple heat sources because each heat source is automatically isolated from all the others without the need for valves.
• SystemZone isolates and controls heating water collection and distribution circuits. Each circuit is independent of all others – no water flows if the circuit’s pump is not operating.
• SystemZone stratifies hot and cold water, ensuring that zones draw from only the hottest water.
• SystemZone has connection points for ancillary safety devices, safety valves and expansion tanks. It has an unobstructed internal baffle system and contains no moving parts for long-term trouble-free use. SystemZone also eliminates the need for motorised valves and a system bypass.
• In a standard, simple, configuration one or two heat sources may be connected to the SystemZone (including Solid FuelAppliances).
• SystemZone is particularly suited to systems where high velocity is required. This means independent pump speeds may be selected to closely match a particular zone’s water velocity requirements.
• SystemZone is suitable for the largest commercial, industrial and district heating applications.
• SystemZone makes it simple to use multiple heat sources because each heat source is automatically isolated from all the others without the need for valves.
| Brand | System Link |
|---|---|
| Manufacturer Part Code | SZD6-28-28-28 |
| Range | SystemZone |
| Product Type | Zone Heating |
