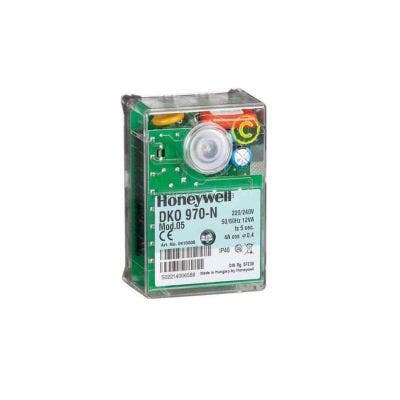

Satronic DKO 970 Oil 1 Stage Control Box
In stock
Product Code
419416
Honeywell Satronic DKO 970 Mod. 05for one - or two-stage oil burners up to 30 kg/h, diesel and gas burners, heat generators, gas boilers
Flame detection:
- Photoresistor MZ 770 S
- Infrared-flicker detector IRD 1010.1
- UV flame sensor UVD 970
Control units with oil burner DKO 970 mod.05 for oil burners with capacity up to 30 kg /h. They are approved and certified in accordance with European standards and regulations.
Programming sequence based on a microprocessor ensures extremely stable timings independent of voltage variations,ambient temperature and /or cycles.
Built-in information system not only provides continuous monitoring of the actual status (very useful especially to monitor the launch phase) but also informs about the cause of possible blockage. The reason for the block is stored so that it can be accessed even after power failure.
The control unit is designed for maximum safety in case of fluctuations of the supply voltage. If the voltage is falling below an acceptable level, operation is interrupted and the control unit automatically prevents the launching. Thus, the security system will not be under threat when the voltage drop of the network. This low voltage protection works not only during startup but also during operation.
The control unit DKO 970 Mod. 05-protected fire resistant,transparent body.
Manual reset from lock and setting the lock is provided by a button with integrated led information system.DKO 970 is compatible with TF 801 TF 801.2,TF 830, TF 830.2.
Flame detection:
- Photoresistor MZ 770 S
- Infrared-flicker detector IRD 1010.1
- UV flame sensor UVD 970
Control units with oil burner DKO 970 mod.05 for oil burners with capacity up to 30 kg /h. They are approved and certified in accordance with European standards and regulations.
Programming sequence based on a microprocessor ensures extremely stable timings independent of voltage variations,ambient temperature and /or cycles.
Built-in information system not only provides continuous monitoring of the actual status (very useful especially to monitor the launch phase) but also informs about the cause of possible blockage. The reason for the block is stored so that it can be accessed even after power failure.
The control unit is designed for maximum safety in case of fluctuations of the supply voltage. If the voltage is falling below an acceptable level, operation is interrupted and the control unit automatically prevents the launching. Thus, the security system will not be under threat when the voltage drop of the network. This low voltage protection works not only during startup but also during operation.
The control unit DKO 970 Mod. 05-protected fire resistant,transparent body.
Manual reset from lock and setting the lock is provided by a button with integrated led information system.DKO 970 is compatible with TF 801 TF 801.2,TF 830, TF 830.2.
| Brand | Satronic |
|---|---|
| Manufacturer Part Code | DKO 970 |
| Product Type | Control Box |
