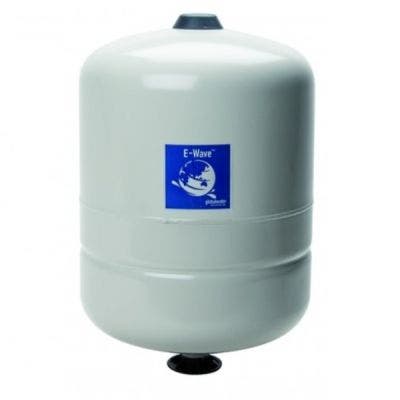

PressureWave Series 24 Litre Inline Pressure Vessel

In stock
Product Code
U16144
24 Litre Pressure Vessel for use with Pressure Boosting Sets mainly for Domestic Pressure Boosting and Light Commercial Use

The PressureWave™ Pressure Vessel Series is constructed of a virgin polypropylene liner combined with an FDA approved high grade butyl diaphragm. This is held against the wall of the tank with a steel clench ring. The brass air valve, sealed by a threaded o-ring valve cap, prevents air leaks. Water enters the tank through a patented stainless steel water connection. The diaphragm and liner are both reinforced in specific wear areas for longer life. All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions. The water connection uniquely provides a dual water/air seal ensuring a complete leak free and maintenance free pressure vessel.

On the exterior, the almond coloured two part polyurethane paint finish over an epoxy undercoating provides hundreds of hours of UV and salt spray protection.

CONSTRUCTION
• Single diaphragm design
• NSF Standard 61, CE/PED, WRAS, ACS, ISO-9001, Gost, Evrazes approved
• Patented stainless steel water connection
• Virgin polypropylene liner
• Two part polyurethane, epoxy primed paint finish
• Leak free, o-ring sealed air valve cap
• Comprehensive testing
• No maintenance
• Standard System Connection: 1″

APPLICATION LIMITS
• Tank precharge: 1.9 bar / 28 psi
• Maximum working temperature: 90 °C
• Maximum working pressure: 10 bar
More Information
ColourWhite
BrandPressure Wave
Manufacturer Part CodePEB-24LX
RangePressure Wave
Product TypeExpansion Vessel
Capacity24 L
