Panasonic Aquarea Modbus Interface for J Generation Units
In stock
Product Code
U29010

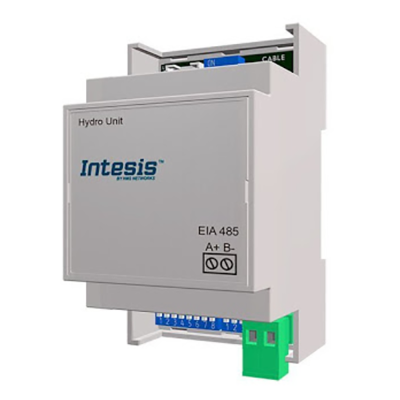

The PAW-AW-MBS-H (or PA-AW2-MBS-1 as per IntesisBox reference) interface allows a complete and naturalintegration of Panasonic Air-to-Water Systems into Modbus RTU (EIA-485) networks. Compatible with Aquarea H models from Panasonic
Reduced dimensions. 93 x 53 x 58 mm.3.7” x 2.1” x 2.3”
• Quick and easy installation.
- Mountable on DIN rail, wall, or even inside the Hydro unit.
• External power not required.
• Direct connection to Modbus RTU (EIA-485) networks. Up to 63 PAW-AW-MBS-H devices can be connected in the same network.
PAW-AW-MBS-H is a Modbus slave device.
• Direct connection to the Hydro unit. Up to 1 Hydro unit can be connected to PAW-AW-MBSH. The cable for this connection is also supplied.
• Configuration from both on-board DIP-switches and Modbus RTU.
• Total Control and Supervision.
• Real states of the Hydro unit's internal variables.
• Allows simultaneous use of the remote controls of the Hydro unit and Modbus RTU.
Reduced dimensions. 93 x 53 x 58 mm.3.7” x 2.1” x 2.3”
• Quick and easy installation.
- Mountable on DIN rail, wall, or even inside the Hydro unit.
• External power not required.
• Direct connection to Modbus RTU (EIA-485) networks. Up to 63 PAW-AW-MBS-H devices can be connected in the same network.
PAW-AW-MBS-H is a Modbus slave device.
• Direct connection to the Hydro unit. Up to 1 Hydro unit can be connected to PAW-AW-MBSH. The cable for this connection is also supplied.
• Configuration from both on-board DIP-switches and Modbus RTU.
• Total Control and Supervision.
• Real states of the Hydro unit's internal variables.
• Allows simultaneous use of the remote controls of the Hydro unit and Modbus RTU.
| Brand | Panasonic |
|---|---|
| Manufacturer Part Code | PAW-AW-MBS-H |
| Range | Aquarea |
| Product Type | Heat Pump Accessory |
