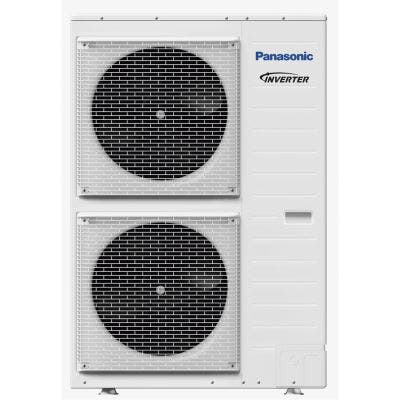

Panasonic Aquarea 9kW T-Cap Outdoor Heat Pump (H Generation)
In stock
Product Code
U11441
Login to see prices
Heavy Item Assistance may be required for Collection or Delivery
Extra Large Item Assistance may be required for Collection or Delivery
Panasonic Aquarea 9kW T-CAP Bi-Bloc Outdoor Heat Pump Unit H Generation
High Capacity for Cold Areas
The Aquarea T-Cap (Total Capacity) will ensure the heating capacity is maintained even at extremely low temperatures delivering outstandingefficiency in heating and also in domestic hot water supply. The T-Cap is specially designed to work under severe outdoor conditions and ensures constant capacity is maintained down to -20° C.
The heat pump’s outdoor unit extracts heat energy from the air and transfers this to the refrigerant in the system which is then compressed to raise the temperature. This heat from the raised temperature refrigerant is transferred via a heat exchanger to the heating or hot water depending on requirements.This transfer can be completed within the outdoor unit in Mono-Bloc systems or in the case of a Bi-Bloc or All in One system refrigerant pipe connects to an indoor unit and the transfer of heat to water is completed in the indoor unit.
This Panasonic T-Cap Air-to-Water Outdoor unit can be used in conjunction with the Aquarea T-CAP All in One H Generation unit or the Aquarea T-Cap Bi-bloc H Generation indoor unit.
Bi-Bloc Indoor Unit
A Bi-Bloc or split is a two part air to water heat pumpwhich consists of an outdoor unit, with heat exchanger, fan unit and compressor connected by refrigerant pipe to an indoor unit, with heat exchanger. The outdoor unit extracts the heat from the air and passes this heat energy to the refrigerant in the system. The refrigerant is compressed up to a high temperature and is circulated to the indoor unit which has a heat exchanger that takes the high temperature heat from the refrigerant and passes it to the water that circulates to the heating and hot watersystem. Installation requires a refrigerant engineer.
Ideal for small spaces, this system combines the indoor unit with a compact 185 litre stainless steel domestic hot water storage tank. Based on the Bi-Bloc model the outdoor unit is connected tothe indoor All in One unit using piping charged with refrigerant.
All in One combined Indoor Unit and Hot Water Storage Tank
The indoor unit has an improved square design with white goods finish that is designed to be compact and save space.It is also designed to be easy to install and maintain with easy access piping and electrical connections. It comes with an integrated remote controlled which can be installed up to 50m from the indoor unit and can function as a room thermostat.
• Single Phase
• Heating and Cooling – MXC
• R410A Refrigerant
• Optional Smartphone control
• Maximum hydraulic module output temperature: 55°C
• Works at temperatures as low as -20°C
• Cooling temperature range 5 to 20°C
High Capacity for Cold Areas
The Aquarea T-Cap (Total Capacity) will ensure the heating capacity is maintained even at extremely low temperatures delivering outstandingefficiency in heating and also in domestic hot water supply. The T-Cap is specially designed to work under severe outdoor conditions and ensures constant capacity is maintained down to -20° C.
The heat pump’s outdoor unit extracts heat energy from the air and transfers this to the refrigerant in the system which is then compressed to raise the temperature. This heat from the raised temperature refrigerant is transferred via a heat exchanger to the heating or hot water depending on requirements.This transfer can be completed within the outdoor unit in Mono-Bloc systems or in the case of a Bi-Bloc or All in One system refrigerant pipe connects to an indoor unit and the transfer of heat to water is completed in the indoor unit.
This Panasonic T-Cap Air-to-Water Outdoor unit can be used in conjunction with the Aquarea T-CAP All in One H Generation unit or the Aquarea T-Cap Bi-bloc H Generation indoor unit.
Bi-Bloc Indoor Unit
A Bi-Bloc or split is a two part air to water heat pumpwhich consists of an outdoor unit, with heat exchanger, fan unit and compressor connected by refrigerant pipe to an indoor unit, with heat exchanger. The outdoor unit extracts the heat from the air and passes this heat energy to the refrigerant in the system. The refrigerant is compressed up to a high temperature and is circulated to the indoor unit which has a heat exchanger that takes the high temperature heat from the refrigerant and passes it to the water that circulates to the heating and hot watersystem. Installation requires a refrigerant engineer.
Ideal for small spaces, this system combines the indoor unit with a compact 185 litre stainless steel domestic hot water storage tank. Based on the Bi-Bloc model the outdoor unit is connected tothe indoor All in One unit using piping charged with refrigerant.
All in One combined Indoor Unit and Hot Water Storage Tank
The indoor unit has an improved square design with white goods finish that is designed to be compact and save space.It is also designed to be easy to install and maintain with easy access piping and electrical connections. It comes with an integrated remote controlled which can be installed up to 50m from the indoor unit and can function as a room thermostat.
• Single Phase
• Heating and Cooling – MXC
• R410A Refrigerant
• Optional Smartphone control
• Maximum hydraulic module output temperature: 55°C
• Works at temperatures as low as -20°C
• Cooling temperature range 5 to 20°C
| Brand | Panasonic |
|---|---|
| Manufacturer Part Code | WH-UX09HE5 |
| Range | Aquarea T-Cap |
| Product Type | Split Outdoor Heat Pump |
| Phase | Single Phase |
| Heat Output | 9 kW |
