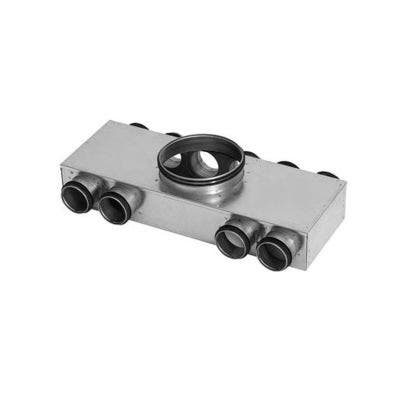

Lindab Heat Recovery MCU 160mm 10 Port (6-4) Ceiling Manifold

In stock
Product Code
U85447
The manifold can be used for both supply and exhaust air. It is available in several types and dimensions.

The manifolds are designed for floor installation but can be used at other locations as well.

All types have couplings with Lindab safe sealings for connections of SR spiral-seamed ducts or semiflexible ducts LFPE. Boxes with Ø 76 couplings with Lindab safe sealings are intended for direct connection of the semiflexible duct LFPE. It is not intended for SR spiral-seamed duct.

The Smart Lock function allows you to fasten LFPE effortlessly to the Safe couplings.

Two turnable anchor plates, placed on the bottom of the manifold, can be used for fixation.

Fulfils the requirements for air tightness class D.
More Information
BrandLindab
Manufacturer Part CodeMCU-160-(6-4)
Product TypeManifold
Connection Size160 mm
Height88 mm
Length520 mm
Width185 mm
