Image Idrain Linear Stainless Steel Shower Drain 600mm

In stock
Product Code

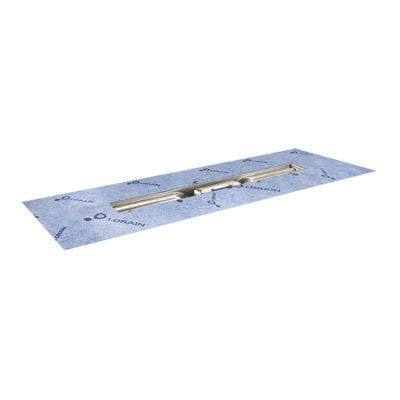

Linear 600 mm fully stainless steel drain. The Insert can be either tiled or turned for stainless steel effect finish.

I-DRAIN® offers ingenious and innovative shower channels that control the water drainage of your shower space in a skilled and elegant manner.

With a mounting height of 72 mm (excluding floor finish) for its Linear drains, I-DRAIN® has achieved the lowest possible mounting height. This height is suitable for renovations as well as for new buildings.


• Deepdrawn – Stainless steel 316
• Mounting Height: 72 mm
• Flow capacity – 33,5l/min. (1 siphon)
• Connection size: 50 mm
• Water seal height: 50 mm
• DDS (double drain system)
• Included: I-Buddy installation mould and tile mould
• 10 year warranty
• Removable and dismountable siphon
• Waterproof:pre-glued waterproofing membrane
• Adhesion tested – 25 years of durability!
• Compatible with liquid waterproofing


• Choice of 5 designs
• 7 sizes: 600-700-800-900-1000-1100-1200
• Combinable with all grating designs
• All types of tile finish – 3 mm to 30 mm
• Grating can be connected with straight and 90° connector pieces
• Grating not included with the shower channel
More Information
ColourStainless Steel
Manufacturer Part CodeIDSS600
Product TypeShower Drain
MaterialStainless Steel
Warranty12 months
Depth54 mm
Length600 mm
Width86 mm

Want to learn more? Login or register for an account now to download technical documentation for this product
