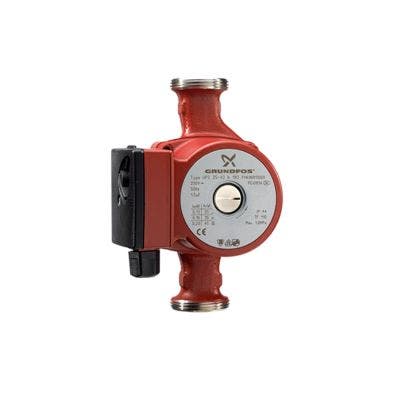

Grundfos UPS 25-80 N 180 1x230V 50Hz Circulator Pump
In stock
Product Code
U54827
Grundfos UP, UPS N circulator pumps have a corrosion-free stainless-steel pump housing and are recommended for domestic hot-water recirculation and underfloor heating systems. UP, UPS N can be connected to an on/off time switch to limit pump operation to periods when hot water is usually required.
Suitable for
• Commercial heating
• Domestic hot water recirculation
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. The pump is characterized by:
• Ceramic shaft and radial bearings.
• Carbon axial bearing.
• Stainless steel rotor can and bearing plate.
• Corrosion-resistant impeller, Composite, PES/PP.
• Stainless steel pump housing.
The motor is a 1-phase motor. No additional motor protection is required.
Suitable for
• Commercial heating
• Domestic hot water recirculation
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid. The pump is characterized by:
• Ceramic shaft and radial bearings.
• Carbon axial bearing.
• Stainless steel rotor can and bearing plate.
• Corrosion-resistant impeller, Composite, PES/PP.
• Stainless steel pump housing.
The motor is a 1-phase motor. No additional motor protection is required.
Brand | Grundfos |
---|---|
Manufacturer Part Code | 98057227 |
Range | UP, UPS |
Product Options | Stainless Steel Body |
Product Type | Secondary Return Pump |
Phase | Single Phase |
Power Supply | 230 V |
Warranty | 2 years |
Size | 25-80 |
