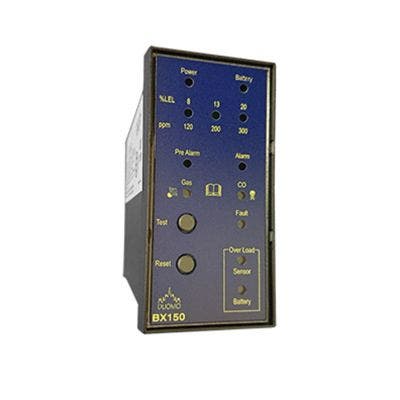

Duomo BX150 Single Zone Detection Panel
In stock
Product Code
U39873
The Duomo BX150 gas detector is a single zone gas detector that detects Carbon Monoxide, Natural Gas and LPG. This control panel forms part of an overall gas detection system.
The BX150 gas detector is designed to meet European normative proposals for natural gas, LPG and carbon monoxide gas detectors.
When gas is detected, the BX150 operates a pre-alarm relay – used for remote sirens or extract fans. If the gas level continues to rise then the main alarm relay is activated to either break the electrical supply to the safety shut off valve or sound a general alarm to allow evacuation of the area.
When faults arise with the sensor or electrical connections to the sensor a separate volt free relay is activated. Please note, the 96 x 48 enclosure is for panel mounting only.
- Single Zone Protection
- 230V and 12V DC
- Panel mounted 96mm x 48mm DIN enclosure
- Positive Safety Option
- Internal Audible alarm
- Manual test function
- Self diagnostic
- Detection of Toxic 0-300ppm / Explosive Gas(es) 0-20%LEL
- 4-20mA signal input
- Pre-Alarm and Main Alarm
- Sensor fault relay output
- IP42 Protective Rating
- CE Certified and approved to EN61010-1 and EN50270
- 1 Year Guarantee
The BX150 gas detector is designed to meet European normative proposals for natural gas, LPG and carbon monoxide gas detectors.
When gas is detected, the BX150 operates a pre-alarm relay – used for remote sirens or extract fans. If the gas level continues to rise then the main alarm relay is activated to either break the electrical supply to the safety shut off valve or sound a general alarm to allow evacuation of the area.
When faults arise with the sensor or electrical connections to the sensor a separate volt free relay is activated. Please note, the 96 x 48 enclosure is for panel mounting only.
- Single Zone Protection
- 230V and 12V DC
- Panel mounted 96mm x 48mm DIN enclosure
- Positive Safety Option
- Internal Audible alarm
- Manual test function
- Self diagnostic
- Detection of Toxic 0-300ppm / Explosive Gas(es) 0-20%LEL
- 4-20mA signal input
- Pre-Alarm and Main Alarm
- Sensor fault relay output
- IP42 Protective Rating
- CE Certified and approved to EN61010-1 and EN50270
- 1 Year Guarantee
| Brand | Duomo |
|---|---|
| Manufacturer Part Code | BX150 |
| Product Type | Gas Fitting |
| Range | Gas Safety |
| Power Supply | 230 VAC 50Hz ± 10% |
| Warranty | 1 year |
| Depth | 119 mm |
| Height | 96 mm |
| Width | 48 mm |
