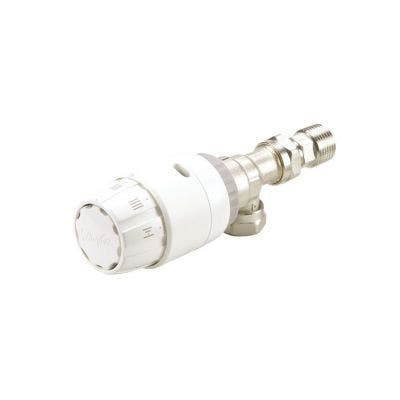

Danfoss RAS-C2 15mm Angle TRV
In stock
Product Code
246110
RAS-C² radiator thermostats are designed for use in 2-pipe domestic heating systems.All RAS-C² Combi Packs comprise of a RA-FS angled or straight pattern bi-directional valve
and a RAS-C2 sensor designed for 2-pipe heating systems.
Combi Packs are also available with a RLV-D lockshield valve. For further data on the
lockshield valve please see separate RLV-D datasheet.
The valves have a ½” BSP (R½”) tail piece connection to the radiator and are available with
15mm, 10mm or 8mm compression fittingor an elbow with 10mm push-fit fitting to connect the valve to the pipe work.
The valve bodies are reversible and bi-directional and include a flow-selectable feature to ensure trouble free installation without any risk of water hammer. For optimum performance, Danfoss recommend the sensor be mounted horizontal where at all possible.
The valve is supplied with a protective cap, which can be used for manual regulation during the construction phase. The cap must not be used as a manual shut of device. RAS-C² sensors incorporate a “Frost Protection” setting and a “Positive Off” feature for maximum user flexibility. Temperature range is from 8°C to 28°C.
and a RAS-C2 sensor designed for 2-pipe heating systems.
Combi Packs are also available with a RLV-D lockshield valve. For further data on the
lockshield valve please see separate RLV-D datasheet.
The valves have a ½” BSP (R½”) tail piece connection to the radiator and are available with
15mm, 10mm or 8mm compression fittingor an elbow with 10mm push-fit fitting to connect the valve to the pipe work.
The valve bodies are reversible and bi-directional and include a flow-selectable feature to ensure trouble free installation without any risk of water hammer. For optimum performance, Danfoss recommend the sensor be mounted horizontal where at all possible.
The valve is supplied with a protective cap, which can be used for manual regulation during the construction phase. The cap must not be used as a manual shut of device. RAS-C² sensors incorporate a “Frost Protection” setting and a “Positive Off” feature for maximum user flexibility. Temperature range is from 8°C to 28°C.
| Colour | White |
|---|---|
| Brand | Danfoss |
| Manufacturer Part Code | 013G605000 |
| Product Type | Thermostatic Radiator Valve |
