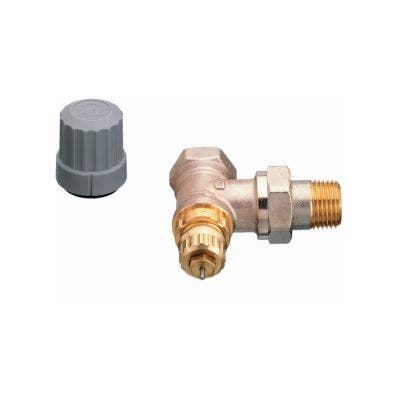

Danfoss RA-FN15 1/2" Vertical Angled Radiator Valve
In stock
Product Code
247008
The RA-FN valve bodies are used in two-pipe heating systems.
The valves are manufactured from brass with nickel plating. The pressure pin of the gland seal
is of chromium steel and works in a lifetime lubricated O-ring seal. The complete gland
assembly can be replaced without draining down the system.
The valves are supplied with a grey protective cap, which can be used for manual regulation
during the construction phase. The protective cap must not be used as a manual shut off
device. A special manual shut off device (code no. 013G3300) should be used.
Compression fittings for 15 mm, 10 mm or 8 mm copper tube are available for RA-FN with 3/8” and 1/2” connections.
In order to avoid deposition and corrosion, the composition of the hot water must be in
accordance with the VDI 2035 guideline (Verein Deutscher Ingenieure).
It is recommended that formulations containing mineral oil are avoided.
All RA-FN valve bodies can be used together with all types of thermostatic elements in the Danfoss RA2000 series.
• RA-FN (Normal flow valves for two-pipe systems)
• Max working pressure: 10 bar
• Max Flow temperature: 120° C
• Connection size in Rp 1/2
• Connection size out R 1/2
The valves are manufactured from brass with nickel plating. The pressure pin of the gland seal
is of chromium steel and works in a lifetime lubricated O-ring seal. The complete gland
assembly can be replaced without draining down the system.
The valves are supplied with a grey protective cap, which can be used for manual regulation
during the construction phase. The protective cap must not be used as a manual shut off
device. A special manual shut off device (code no. 013G3300) should be used.
Compression fittings for 15 mm, 10 mm or 8 mm copper tube are available for RA-FN with 3/8” and 1/2” connections.
In order to avoid deposition and corrosion, the composition of the hot water must be in
accordance with the VDI 2035 guideline (Verein Deutscher Ingenieure).
It is recommended that formulations containing mineral oil are avoided.
All RA-FN valve bodies can be used together with all types of thermostatic elements in the Danfoss RA2000 series.
• RA-FN (Normal flow valves for two-pipe systems)
• Max working pressure: 10 bar
• Max Flow temperature: 120° C
• Connection size in Rp 1/2
• Connection size out R 1/2
| Brand | Danfoss |
|---|---|
| Manufacturer Part Code | 013G002300 |
| Range | Radiator Valves & Accessories |
| Product Type | Thermostatic Radiator Valve |
| Pressure | 10 bar |
| Warranty | 2 years |
