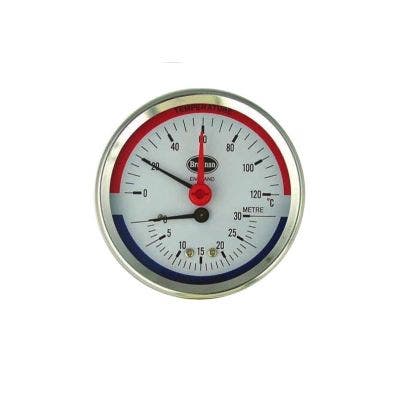

Brannan 80mm Combined Thermometer/Altitude Gauge 0 to 30 metres (Back Entry)
In stock
Product Code
U93872
80mm Combined Thermometer/Altitude Gauge Back Entry 0 to 120°C and 0 to 30 metres
Applications
· Suitable for gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts.
· Pneumatics and hydraulics
· Heating, ventilation, air-conditioning
Standard Product Specifications
Design: BS EN 837
Case: 80mm, Black Steel and chrome bezel
Connection: 1/2” BSP Back Entry
Window: Clear Plastic, snap fit
Pointer: Black aluminium with loose red pointer
Filling: Dry
Working Pressure: Steady: 75% full scale range
Fluctuating: 60% full scale range
Short Time: full scale range
Operating Temperature: Ambient: -20 to +60°C
Medium: -20 to +60°C
Storage Temperature: -40 to +60°C
Temperature Effect: Whentemperature of the pressure element deviates from reference temperature of 20°C the maximum additional error is +/- 0.4% per 10°C of the span rising and falling.
Sensor Mechanism: Bimetal coil, copper alloy bourdon
Instrument Weight: 294g
Applications
· Suitable for gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts.
· Pneumatics and hydraulics
· Heating, ventilation, air-conditioning
Standard Product Specifications
Design: BS EN 837
Case: 80mm, Black Steel and chrome bezel
Connection: 1/2” BSP Back Entry
Window: Clear Plastic, snap fit
Pointer: Black aluminium with loose red pointer
Filling: Dry
Working Pressure: Steady: 75% full scale range
Fluctuating: 60% full scale range
Short Time: full scale range
Operating Temperature: Ambient: -20 to +60°C
Medium: -20 to +60°C
Storage Temperature: -40 to +60°C
Temperature Effect: Whentemperature of the pressure element deviates from reference temperature of 20°C the maximum additional error is +/- 0.4% per 10°C of the span rising and falling.
Sensor Mechanism: Bimetal coil, copper alloy bourdon
Instrument Weight: 294g
| Stocked Item | No |
|---|---|
| Diameter | 80 mm |
| Brand | Brannan |
| Manufacturer Part Code | 35/615/1 |
| Product Type | Gauge |
| Connection Size | ½" BSP |
| Connection Type | Back Entry |
| Standards | BS EN 837 |
