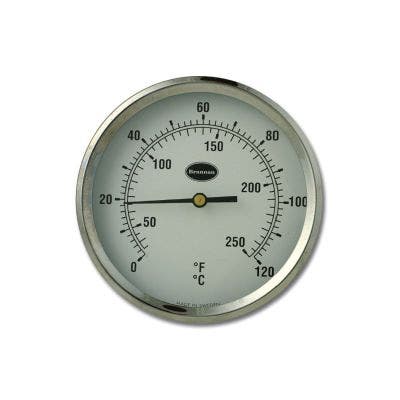

Brannan 100mm (4") Direct Mounting Temperature Gauge 0 to 120° C&F (Back Entry 50mm Pocket)
In stock
Product Code
U93660
100mm Dial Thermometer Direct Mounting 0 to 120°C&F Back Entry
Applications
Heating, ventilation, air-conditioning
Hot water
Light industrial
Standard Product Specifications
Design: BS EN 13190
Accuracy Class: 2
Case: 100mm, black steel with Chrome Bezel
Connection: Push fit, back entry
Stem Diameter: 9mm
Stem Length: 50mm
Pocket: 1/2” BSP brass
Window: PMMA
Pointer: Black plastic
Range: 0 to 120°C&F
Operating Temperature: -40 to +80°C
Storage Temperature: -40 to +60°C
Temperature Element: Bimetal
Protection: IP 54 (BS EN 60529:1992)
Dial Weight: 170g (including pocket)
Dial Dimensions: 67 x 100mmØ
Applications
Heating, ventilation, air-conditioning
Hot water
Light industrial
Standard Product Specifications
Design: BS EN 13190
Accuracy Class: 2
Case: 100mm, black steel with Chrome Bezel
Connection: Push fit, back entry
Stem Diameter: 9mm
Stem Length: 50mm
Pocket: 1/2” BSP brass
Window: PMMA
Pointer: Black plastic
Range: 0 to 120°C&F
Operating Temperature: -40 to +80°C
Storage Temperature: -40 to +60°C
Temperature Element: Bimetal
Protection: IP 54 (BS EN 60529:1992)
Dial Weight: 170g (including pocket)
Dial Dimensions: 67 x 100mmØ
| Brand | Brannan |
|---|---|
| Manufacturer Part Code | 31/621/0 |
| Product Type | Gauge |
| Standards | BS EN 13190 |
| Diameter | 100 mm |
| Connection Type | Back Entry |
| Connection Size | 1/2" BSP |
