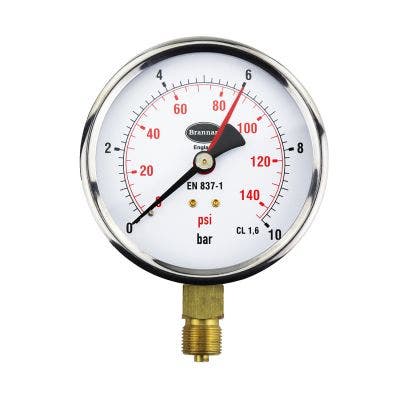

Brannan 100mm (4") 0-10 bar Black Steel Case Pressure Gauge with Bezel (Bottom Entry)
In stock
Product Code
U93656
100mm Pressure Gauge 0 to 10 bar & psi Bottom Entry
Applications
Suitable for gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts.
Pneumatics and hydraulics
Heating, ventilation, air-conditioning
Standard Product Specifications
Design: BS EN 837
Accuracy Class: 1.6
Case: 100mm, Black Steel with blow out disc
Suitable for flange fitting
Bezel: Chrome
Connection: 3/8” BSP Brass bottom entry
Window: Clear plastic, snap fit
Pointers: Black aluminium
Loose red aluminium pointer
Filling: Dry
Range: 0 to 6 bar & psi
Working Pressure: Steady: 75% full scale range
Fluctuating: 60% full scale range
Short Time: full scale range
Operating Temperature: Ambient: -20 to +60°C
Medium: -20 to +60°C
Storage Temperature: -40 to +60°C
Temperature Effect: When temperature of the pressure element deviates from reference temperature of 20°C the maximum additional error is +/- 0.4% per 10°C of the span rising and falling
Applications
Suitable for gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts.
Pneumatics and hydraulics
Heating, ventilation, air-conditioning
Standard Product Specifications
Design: BS EN 837
Accuracy Class: 1.6
Case: 100mm, Black Steel with blow out disc
Suitable for flange fitting
Bezel: Chrome
Connection: 3/8” BSP Brass bottom entry
Window: Clear plastic, snap fit
Pointers: Black aluminium
Loose red aluminium pointer
Filling: Dry
Range: 0 to 6 bar & psi
Working Pressure: Steady: 75% full scale range
Fluctuating: 60% full scale range
Short Time: full scale range
Operating Temperature: Ambient: -20 to +60°C
Medium: -20 to +60°C
Storage Temperature: -40 to +60°C
Temperature Effect: When temperature of the pressure element deviates from reference temperature of 20°C the maximum additional error is +/- 0.4% per 10°C of the span rising and falling
| Brand | Brannan |
|---|---|
| Manufacturer Part Code | 34/655/0 |
| Product Type | Gauge |
| Pressure | 0-10 bar |
| Standards | BS EN 837 |
| Diameter | 100 mm |
| Connection Type | Bottom Entry |
| Connection Size | 3/8" BSP |
