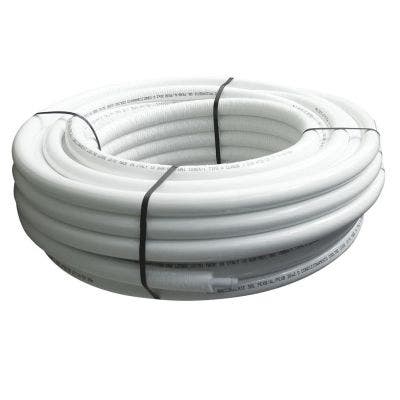

Ape 16mm Multilayer Coated Pipe 50m with 10mm Insulation (White)
In stock
Product Code
U42368
For Air Conditioning
APE MULTYLAYER multilayer pipe (PE-xB / Al / PE-xB) coated in compliance with classes 1-2-4 and 5 of the UNI EN ISO 21003 and DIN 4726 standards for heating and air conditioning.
Composed of a double internal and external layer in cross-linked polyethylene PE-xB (method B with silanes) bonded by means of a special adhesive to an intermediate layer in longitudinally welded aluminum alloy (TIG butt) and by an insulating sheath in polyethylene (PE- LD) closed cell foam plus a scratch-resistant PE-LD finish film.
The pipe guarantees a high level of modeling of the structure, complete barrier to oxygen, total hygiene and high resistance to corrosion thanks to the conduction of the fluid in the internal layer of PE-xB.
● Max working temperature: 95 ° C.
● Max peak temperature: 110 ° C.
● Max pressure at 95: 10 bar.
● Permeability to oxygen: 0 mg / l.
● Roughness: 7 μm.
● Complies with UNI EN ISO 21003, DIN 4726.
● Thermal conductivity of the coating at 40 ° C: 0.04 W / mK.
● The insulation thicknesses of the pipes comply with Presidential Decree no. 412 of 93.
● The coated tube is approved to DD.MM. of 26 June 1984 and 3 September 2001.
● Reaction to fire class 1-1.
Size: 16 x 2.0
Sheath Thickness: 10 mm
Roll Length: 50 m
Qty per pallet: 500 m
Pallet Size: 80cm x 80cm x H. 230 cm
APE MULTYLAYER multilayer pipe (PE-xB / Al / PE-xB) coated in compliance with classes 1-2-4 and 5 of the UNI EN ISO 21003 and DIN 4726 standards for heating and air conditioning.
Composed of a double internal and external layer in cross-linked polyethylene PE-xB (method B with silanes) bonded by means of a special adhesive to an intermediate layer in longitudinally welded aluminum alloy (TIG butt) and by an insulating sheath in polyethylene (PE- LD) closed cell foam plus a scratch-resistant PE-LD finish film.
The pipe guarantees a high level of modeling of the structure, complete barrier to oxygen, total hygiene and high resistance to corrosion thanks to the conduction of the fluid in the internal layer of PE-xB.
● Max working temperature: 95 ° C.
● Max peak temperature: 110 ° C.
● Max pressure at 95: 10 bar.
● Permeability to oxygen: 0 mg / l.
● Roughness: 7 μm.
● Complies with UNI EN ISO 21003, DIN 4726.
● Thermal conductivity of the coating at 40 ° C: 0.04 W / mK.
● The insulation thicknesses of the pipes comply with Presidential Decree no. 412 of 93.
● The coated tube is approved to DD.MM. of 26 June 1984 and 3 September 2001.
● Reaction to fire class 1-1.
Size: 16 x 2.0
Sheath Thickness: 10 mm
Roll Length: 50 m
Qty per pallet: 500 m
Pallet Size: 80cm x 80cm x H. 230 cm
| Colour | White |
|---|---|
| Brand | Ape Raccorderie |
| Manufacturer Part Code | 9MRC02162050F |
| Product Type | Multilayer Pipe |
| Size | 16 mm |
| Length | 50 m |
