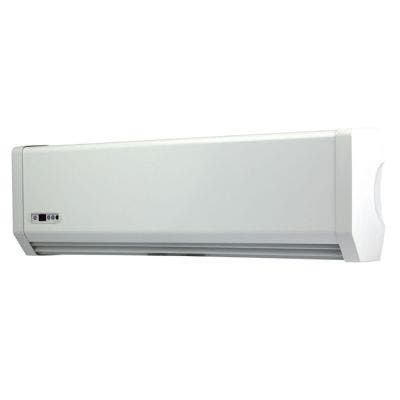

Myson Hi-Line Super RC 25-18 Fan Convector
In stock
Product Code
U55164
HI-LINE Super RC is easy to install, and the following should be taken into consideration:
• Ensure that the pipes supplying the hot water are sized correctly based on the required flow rate
• Each product has an in-built low limit thermostat which activates the fan when the water temperature reaches 32°C
• HI-LINE Super RC requires an electrical connection for the fan, and has a low power consumption
• Maximum installation height is 3m to the under side of the unit
• Minimum installation height is 1.8m to the under side of the unit
• Maximum ceiling height is 3.5m
• Minimum side clearance is 150mm
If installing the product above the recommended height consider adding additional margin to the heat loss, or install de-stratification fans.
• Ensure that the pipes supplying the hot water are sized correctly based on the required flow rate
• Each product has an in-built low limit thermostat which activates the fan when the water temperature reaches 32°C
• HI-LINE Super RC requires an electrical connection for the fan, and has a low power consumption
• Maximum installation height is 3m to the under side of the unit
• Minimum installation height is 1.8m to the under side of the unit
• Maximum ceiling height is 3.5m
• Minimum side clearance is 150mm
If installing the product above the recommended height consider adding additional margin to the heat loss, or install de-stratification fans.
| Colour | White |
|---|---|
| Manufacturer Part Code | 2HI25 |
| Brand | Purmo |
| Range | Hi-Line |
| Warranty | 2 years |
| Product Type | Fans |
| Depth | 203 mm |
| Heat Output Δ @ 20°C | 1709 W |
| Heat Output Δ @ 30°C | 2563 W |
| Heat Output Δ @ 50°C | 4270 W |
| Height | 275 mm |
| Width | 1150 mm |
