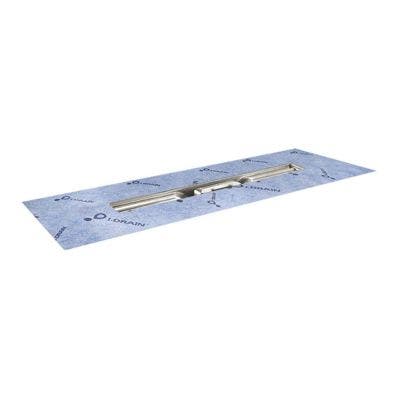

Image Idrain Linear ABS Shower Drain
In stock
Only %1 left
Product Code
CP0378
ABS is a light but hard & impact resistant polymer – very suitable for renovation & new construction.
The I-DRAIN® ABS Linear 54 is cast in one piece and is therefore very easy to clean.
• High-quality ABS shower drain
• Mounting Height: 54 mm
• Flow capacity –27 l/min. (1 siphon)
• Connection size: 40 mm
• Water seal height: 30 mm
• DDS (double drain system)
• 10 year warranty
• Waterproof: Pre-glued waterproofing membrane
- Adhesion tested – 25 years of durability!
- Compatible with liquid waterproofing
• Removable and dismountable siphon
• I-Buddy – Installation template for quick and correct installation
• With tile block – for quick and correct finishing with tiles
Gratings
• Choice of 10 designs
• 6 sizes: 600-700-800-900-1000-1200
• Grating included with the shower channel
• Grating can be connected with straight and 90° connector pieces
The I-DRAIN® ABS Linear 54 is cast in one piece and is therefore very easy to clean.
• High-quality ABS shower drain
• Mounting Height: 54 mm
• Flow capacity –27 l/min. (1 siphon)
• Connection size: 40 mm
• Water seal height: 30 mm
• DDS (double drain system)
• 10 year warranty
• Waterproof: Pre-glued waterproofing membrane
- Adhesion tested – 25 years of durability!
- Compatible with liquid waterproofing
• Removable and dismountable siphon
• I-Buddy – Installation template for quick and correct installation
• With tile block – for quick and correct finishing with tiles
Gratings
• Choice of 10 designs
• 6 sizes: 600-700-800-900-1000-1200
• Grating included with the shower channel
• Grating can be connected with straight and 90° connector pieces
